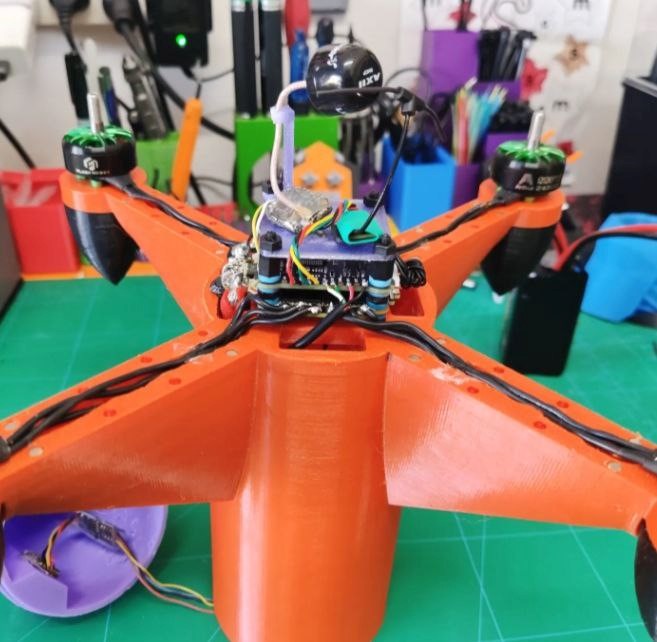

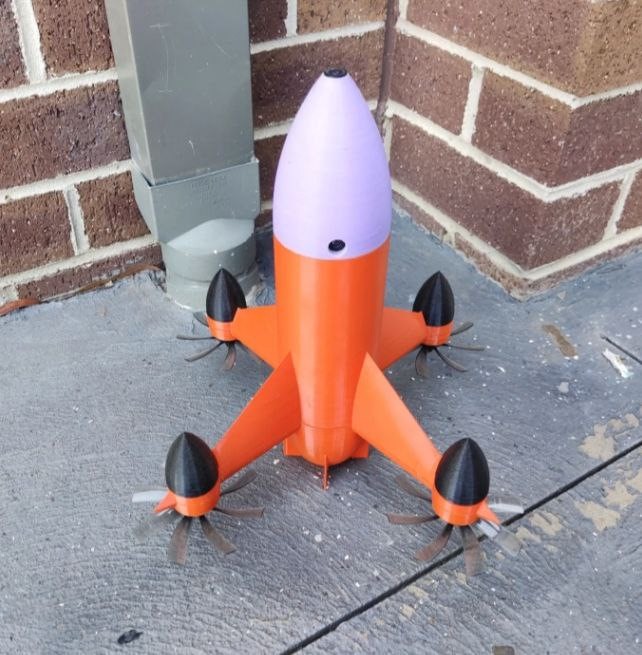

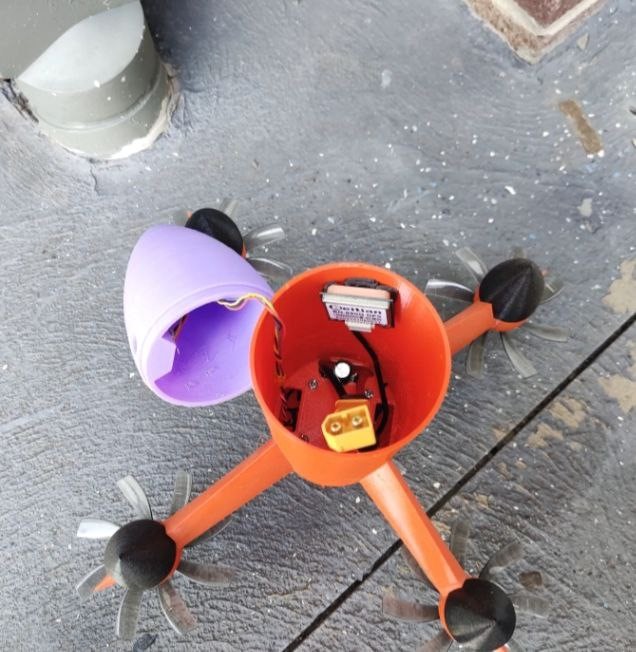

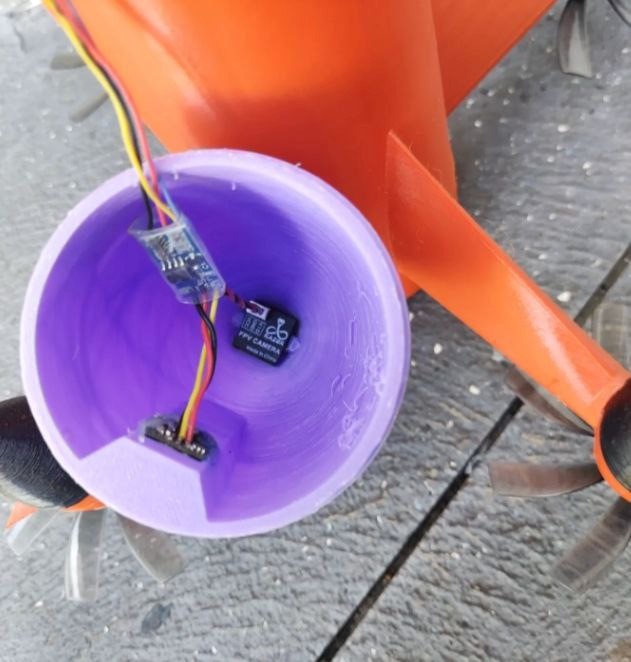

'Interceptor' Rocket Quadcopter

This STL file has been sourced from a private russian engineering group, and acquiring it required passing a series of entry questions to gain access to the chat group.

Now that the initial hurdles have been cleared, I can share the files with you.

The russian recommended setup is:

1x Betaflight flight controller with a 6S adapter

1x 4-in-1 ESC capable of handling 6S at a minimum of 50 amps.

4x 2207 2500KV motors.

1x Foxeer Razr Nano FPV camera, and a Runcam Nano 3.

1x Vifly camera switcher, an FPV VTX antenna.

1x ELRS transmitter.

1x GPS sensor (MQ250).

For testing, standard 5-inch props are recommended, while high-speed runs can utilise 5.2x6.0 props. If you're using a LiPo battery, a 4S 1800mAh battery is suitable for testing, but a 6S 1500mAh will yield the best results for speed runs.

The file contains two builds, one that uses 3mm magnets to secure the bottom halves of the drone together, or another that uses 2.5 hex bolts.  (it says 3mm hex but they got their measurements wrong in the designing phase and I've had their pleasure of finding this out first hand, haha!)

All proceeds go towards funding project Blackcat and the continuation of the upkeep of my website.

Print in standard PLA with a 20% infil setting.
